Contain and Reduce Dust
Increase dust sealing and reduce airborne dust
The TRANSPAR is our most versatile and effective dust confinement tool. By combining the principle of a deep trough with external sliding rails and flexible self-adjusting skirts, the TRANSPAR transforms your conveyor into a dust-tight tube. It can be used with material transfer conveyors, located where it meets another conveyor, a screen or a crusher. It may be equipped with a SPARMAT impact bed to absorb the shocks caused by heavy material striking the belt at high velocity.
TRANSPAR benefits:
- Reduces dust and spills by 95%
- Reduces the need to clean belts by over 200%
- Eliminates the need for daily skirt adjustment
- Reduces general conveyor maintenance
- No loss of sealing tightness in case of belt misalignment
- Quick and sizable ROI
Why a deep trough?
- Increases belt “beam effect” and reduces sag
- Uses both belt covers to seal it
- Optimizes centring of the material transported on the belt
TRANSPAR features:
- Deep trough ranging from 45° to 75°
- Maze sealing system
- Ultra-high density polymer sliding panel
- Galvanized chassis
- May be easily connected to a deduster
- Compatible with the SPARMAT impact bed and MS SPAR idler system
- Available for belts from 18″ to 96″ wide and at least 10′ (3 m) long
Combined with a dust extraction system
Take control of dust emissions with our negative-pressure dust filtration solutions.
The TRANSPAR sealing system is particularly effective when combined with a dust filtration system to eliminate dust generated during material processing and conveying on the conveyor belt.
Features and Benefits
- Efficient dust extraction directly at the source
- No ductwork:
- No duct maintenance
- No blockages
- No loss of suction
- Standard configuration requires no handling of fines, as they are discharged directly onto the conveyor belt
- Side-mounted configuration also available to extract process dust
- Units available with capacities up to 4,100 CFM and a 15 HP motor
- Stainless steel housing and hot-dip galvanized steel support structure

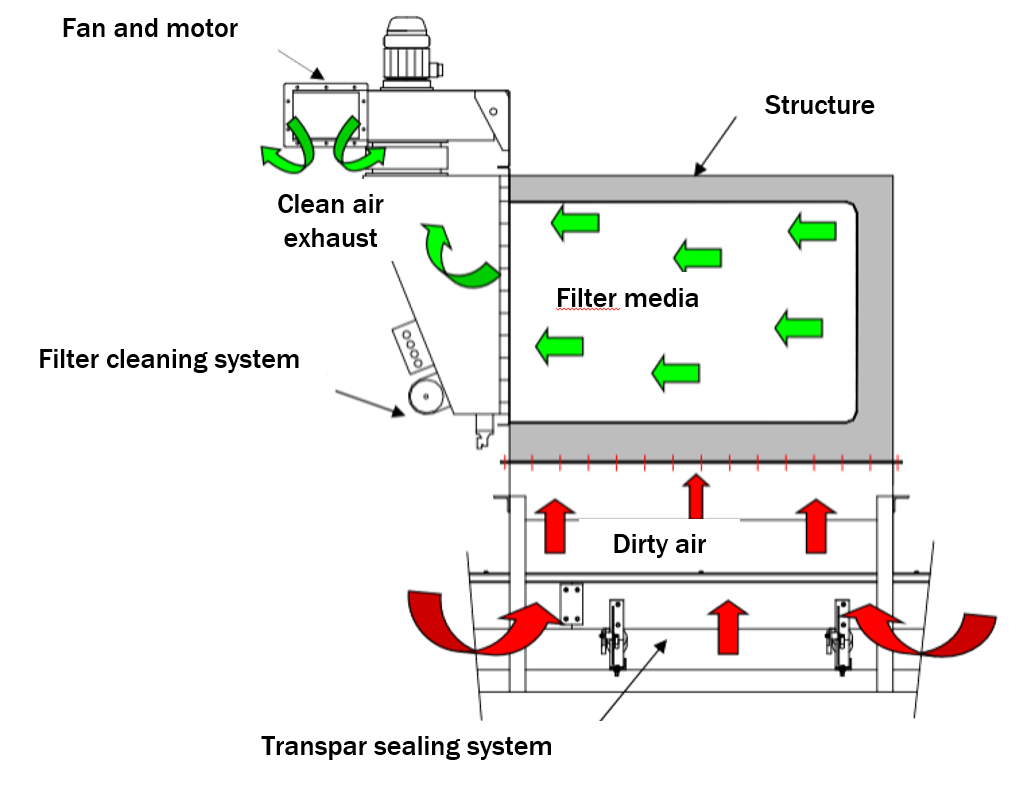

Working principle
BEFORE

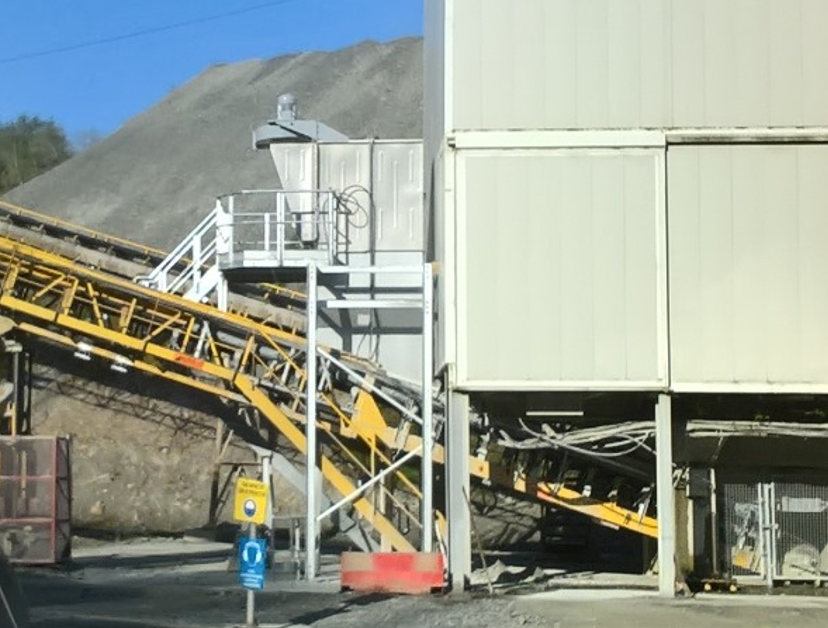

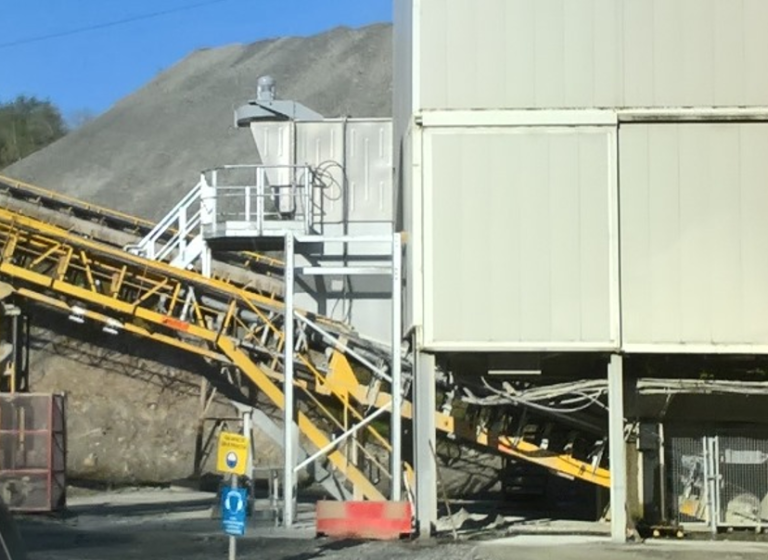

AFTER
